Secret of Intel Management Engine by Igor Skochinsky

1. Intel ME Secrets Hidden code in your chipset and how to discover what exactly it does Igor Skochinsky Hex-Rays CODE BLUE 2014 Tokyo

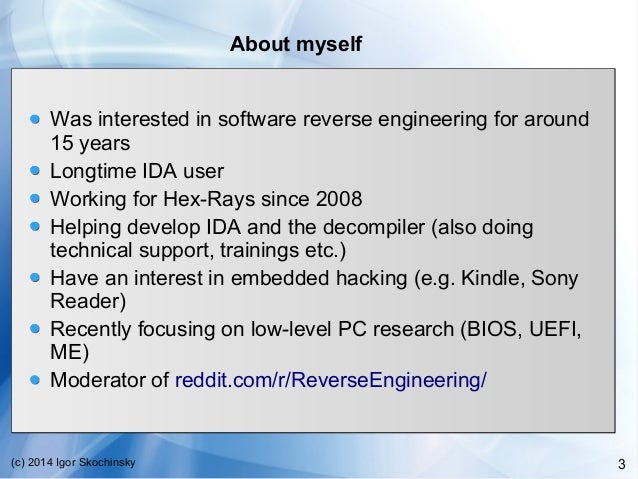

3. 3(c) 2014 Igor Skochinsky About myself Was interested in software reverse engineering for around 15 years Longtime IDA user Working for Hex-Rays since 2008 Helping develop IDA and the decompiler (also doing technical support, trainings etc.) Have an interest in embedded hacking (e.g. Kindle, Sony Reader) Recently focusing on low-level PC research (BIOS, UEFI, ME) Moderator of reddit.com/r/ReverseEngineering/

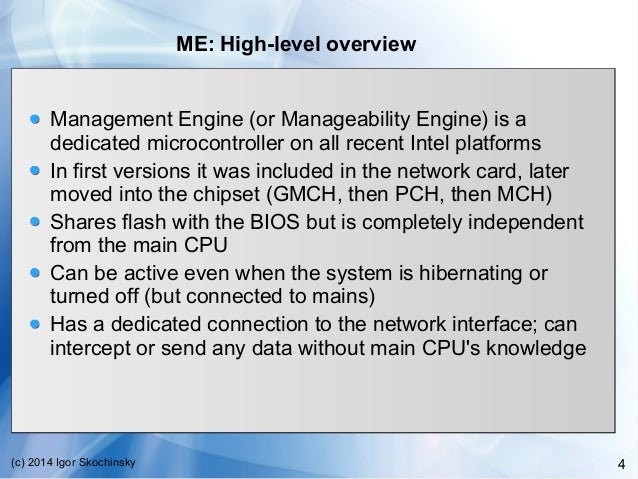

4. 4(c) 2014 Igor Skochinsky ME: High-level overview Management Engine (or Manageability Engine) is a dedicated microcontroller on all recent Intel platforms In first versions it was included in the network card, later moved into the chipset (GMCH, then PCH, then MCH) Shares flash with the BIOS but is completely independent from the main CPU Can be active even when the system is hibernating or turned off (but connected to mains) Has a dedicated connection to the network interface; can intercept or send any data without main CPU's knowledge

6. 6(c) 2014 Igor Skochinsky ME: High-level overview Communicating with the Host OS and network HECI (MEI): Host Embedded Controller Interface; communication using a PCI memory-mapped area Network protocol is SOAP based; can be plain HTTP or HTTPS

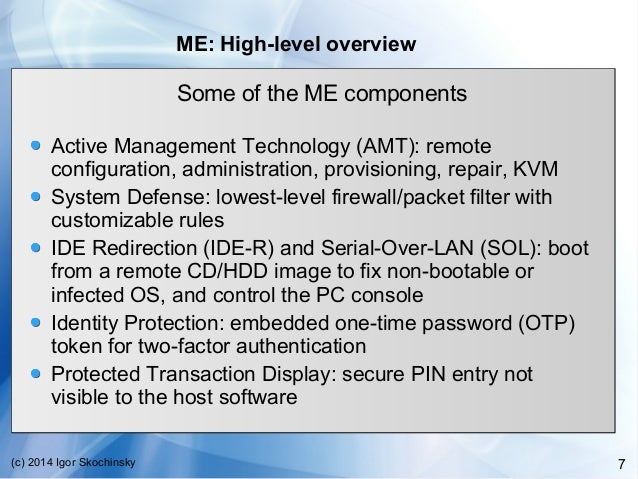

7. 7(c) 2014 Igor Skochinsky ME: High-level overview Some of the ME components Active Management Technology (AMT): remote configuration, administration, provisioning, repair, KVM System Defense: lowest-level firewall/packet filter with customizable rules IDE Redirection (IDE-R) and Serial-Over-LAN (SOL): boot from a remote CD/HDD image to fix non-bootable or infected OS, and control the PC console Identity Protection: embedded one-time password (OTP) token for two-factor authentication Protected Transaction Display: secure PIN entry not visible to the host software

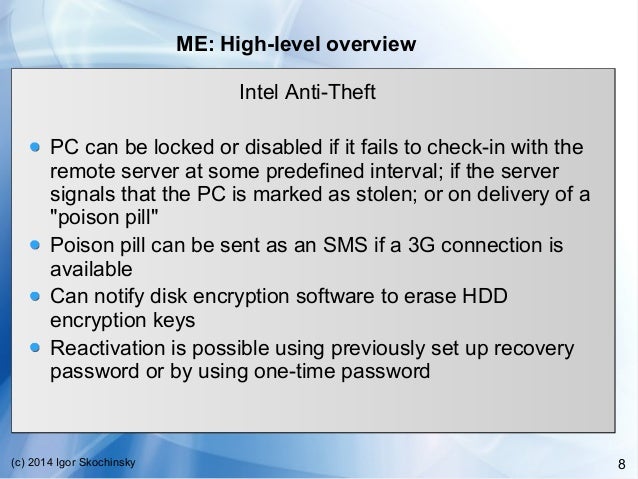

8. 8(c) 2014 Igor Skochinsky ME: High-level overview Intel Anti-Theft PC can be locked or disabled if it fails to check-in with the remote server at some predefined interval; if the server signals that the PC is marked as stolen; or on delivery of a "poison pill" Poison pill can be sent as an SMS if a 3G connection is available Can notify disk encryption software to erase HDD encryption keys Reactivation is possible using previously set up recovery password or by using one-time password

10. 10(c) 2014 Igor Skochinsky ME: Low-level details Sources of information Intel's whitepapers and other publications (e.g. patents) Intel's official drivers and software HECI driver, management services, utilities AMT SDK, code samples Linux drivers and supporting software; coreboot BIOS updates for boards on Intel chipsets Even though ME firmware is usually not updateable using normal means, it's commonly still included in the BIOS image Sometimes separate ME firmware updates are available too

11. 11(c) 2014 Igor Skochinsky ME firmware kits Sources of information Intel's ME Firmware kits are not supposed to be distributed to end users However, many vendors still put up the whole package instead of just the drivers, or forget to disable the FTP listing With a few picked keywords you can find the good stuff :)

12. 12(c) 2014 Igor Skochinsky Intel FSP Intel Firmware Support Package was released in 2013 Low-level initialization code from Intel for firmware writers Freely downloadable from Intel's site The package for HM76/QM77 includes ME firmware, tools and documentation http://www.intel.com/content/www/us/en/intelligent-systems/intel-firmware-support-package/intel-fsp-overview Documentation still contains "confidential" markings :)

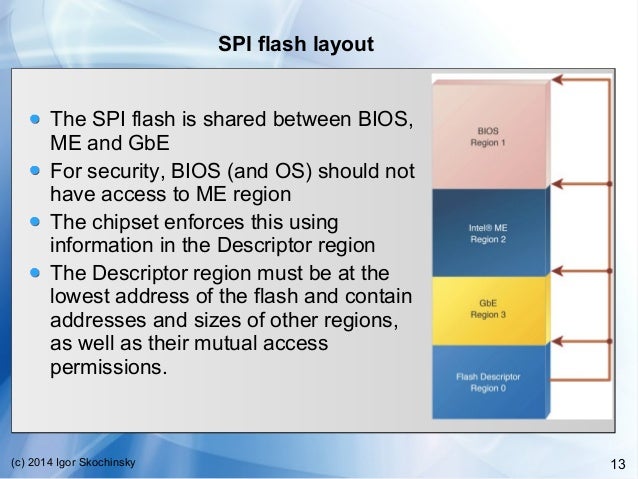

13. 13(c) 2014 Igor Skochinsky SPI flash layout The SPI flash is shared between BIOS, ME and GbE For security, BIOS (and OS) should not have access to ME region The chipset enforces this using information in the Descriptor region The Descriptor region must be at the lowest address of the flash and contain addresses and sizes of other regions, as well as their mutual access permissions.

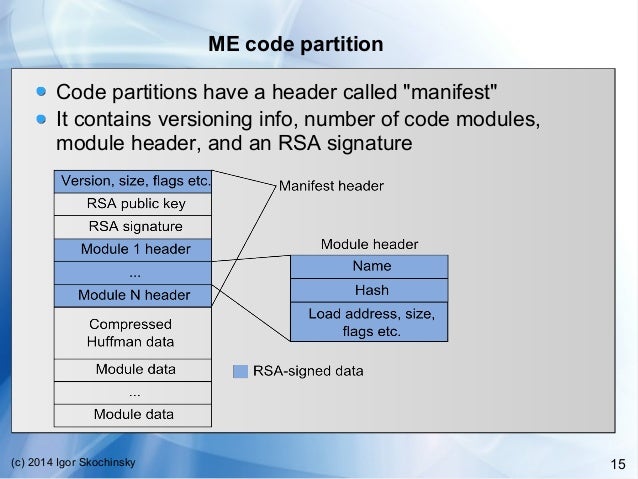

16. 16(c) 2014 Igor Skochinsky ME core evolution It seems there have been two generations of the microcontroller core, and corresponding changes in firmware layout Following discussion covers mostly Gen 2: Intel 5 Series (aka Ibex Peak) and later chipsets Gen 1 Gen 2 ME versions 1.x-5.x 6.x-9.x Core ARCTangent-A4 ARC 600(?) Instruction set ARC (32-bit) ARCompact (32/16) Manifest tag $MAN $MN2 Module header tag $MOD $MME Code compression None, LZMA None, LZMA, Huffman

17. 17(c) 2014 Igor Skochinsky ME code modules Module name Description BUP Bringup (hardware initialization/configuration) KERNEL Scheduler, low-level APIs for other modules POLICY Secondary init tasks, some high-level APIs HOSTCOMM Handles high-level protocols over HECI/MEI CLS Capability Licensing Service – enable/disable features depending on SKU, SKU upgrades TDT Theft Deterrence Technology (Intel Anti-Theft) Pavp Protected Audio-Video Path JOM Dynamic Application Loader (DAL) – used to implement Identity Protection Technology (IPT) Some common modules found in recent firmwares

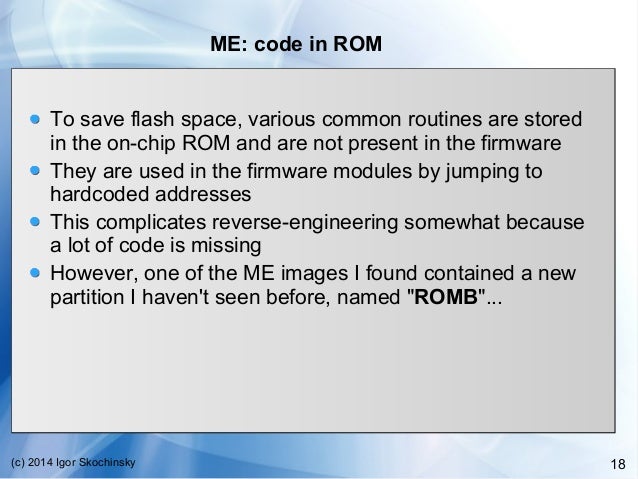

18. 18(c) 2014 Igor Skochinsky ME: code in ROM To save flash space, various common routines are stored in the on-chip ROM and are not present in the firmware They are used in the firmware modules by jumping to hardcoded addresses This complicates reverse-engineering somewhat because a lot of code is missing However, one of the ME images I found contained a new partition I haven't seen before, named "ROMB"...

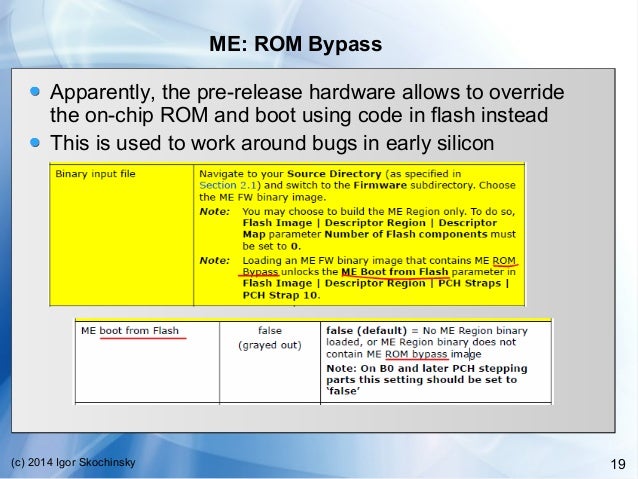

19. 19(c) 2014 Igor Skochinsky ME: ROM Bypass Apparently, the pre-release hardware allows to override the on-chip ROM and boot using code in flash instead This is used to work around bugs in early silicon

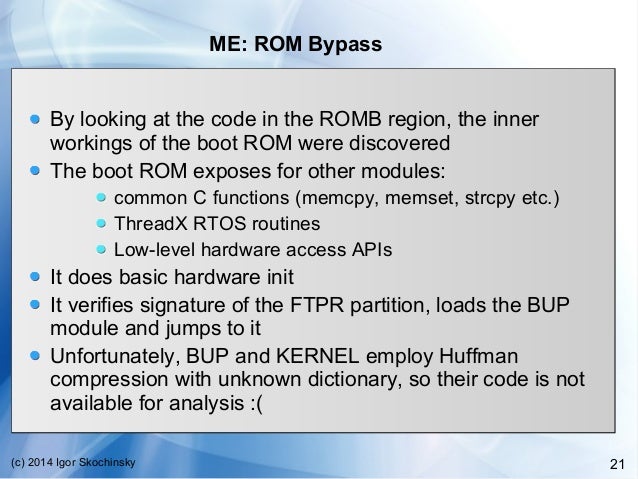

21. 21(c) 2014 Igor Skochinsky ME: ROM Bypass By looking at the code in the ROMB region, the inner workings of the boot ROM were discovered The boot ROM exposes for other modules: common C functions (memcpy, memset, strcpy etc.) ThreadX RTOS routines Low-level hardware access APIs It does basic hardware init It verifies signature of the FTPR partition, loads the BUP module and jumps to it Unfortunately, BUP and KERNEL employ Huffman compression with unknown dictionary, so their code is not available for analysis :(

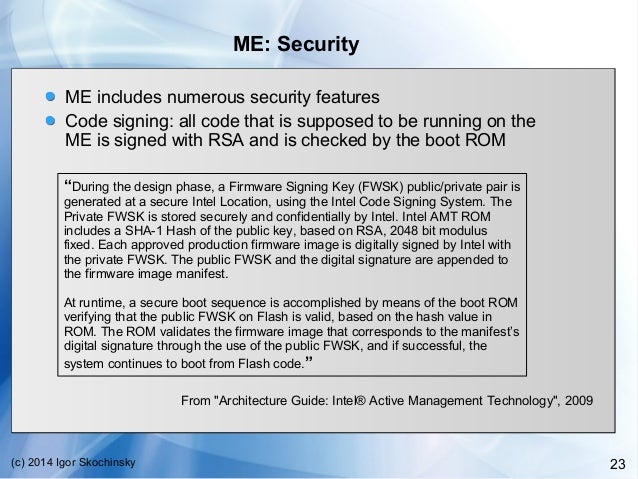

23. 23(c) 2014 Igor Skochinsky ME: Security ME includes numerous security features Code signing: all code that is supposed to be running on the ME is signed with RSA and is checked by the boot ROM “During the design phase, a Firmware Signing Key (FWSK) public/private pair is generated at a secure Intel Location, using the Intel Code Signing System. The Private FWSK is stored securely and confidentially by Intel. Intel AMT ROM includes a SHA-1 Hash of the public key, based on RSA, 2048 bit modulus fixed. Each approved production firmware image is digitally signed by Intel with the private FWSK. The public FWSK and the digital signature are appended to the firmware image manifest. At runtime, a secure boot sequence is accomplished by means of the boot ROM verifying that the public FWSK on Flash is valid, based on the hash value in ROM. The ROM validates the firmware image that corresponds to the manifest’s digital signature through the use of the public FWSK, and if successful, the system continues to boot from Flash code.” From "Architecture Guide: Intel® Active Management Technology", 2009

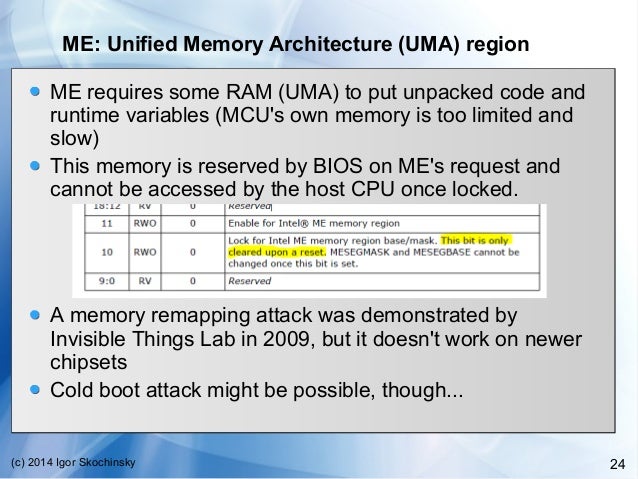

24. 24(c) 2014 Igor Skochinsky ME: Unified Memory Architecture (UMA) region ME requires some RAM (UMA) to put unpacked code and runtime variables (MCU's own memory is too limited and slow) This memory is reserved by BIOS on ME's request and cannot be accessed by the host CPU once locked. A memory remapping attack was demonstrated by Invisible Things Lab in 2009, but it doesn't work on newer chipsets Cold boot attack might be possible, though...

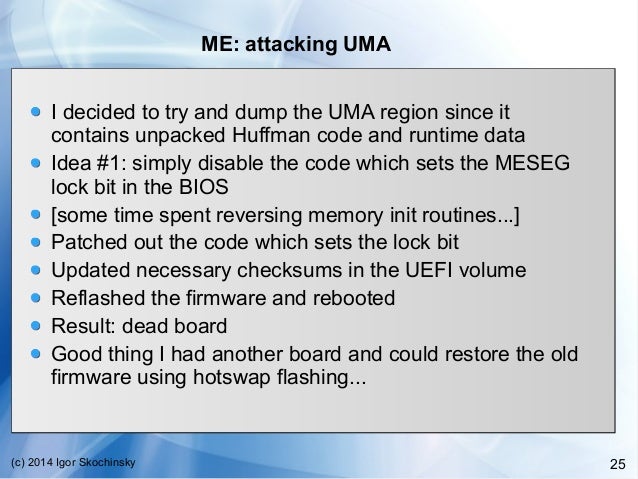

25. 25(c) 2014 Igor Skochinsky ME: attacking UMA I decided to try and dump the UMA region since it contains unpacked Huffman code and runtime data Idea #1: simply disable the code which sets the MESEG lock bit in the BIOS [some time spent reversing memory init routines...] Patched out the code which sets the lock bit Updated necessary checksums in the UEFI volume Reflashed the firmware and rebooted Result: dead board Good thing I had another board and could restore the old firmware using hotswap flashing...

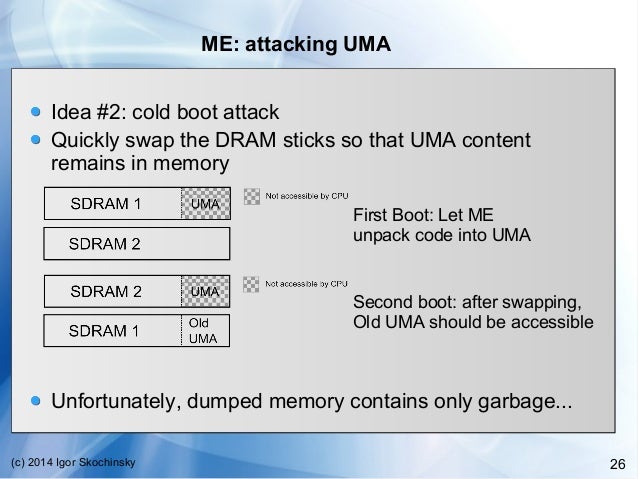

26. 26(c) 2014 Igor Skochinsky ME: attacking UMA Idea #2: cold boot attack Quickly swap the DRAM sticks so that UMA content remains in memory Unfortunately, dumped memory contains only garbage... First Boot: Let ME unpack code into UMA Second boot: after swapping, Old UMA should be accessible

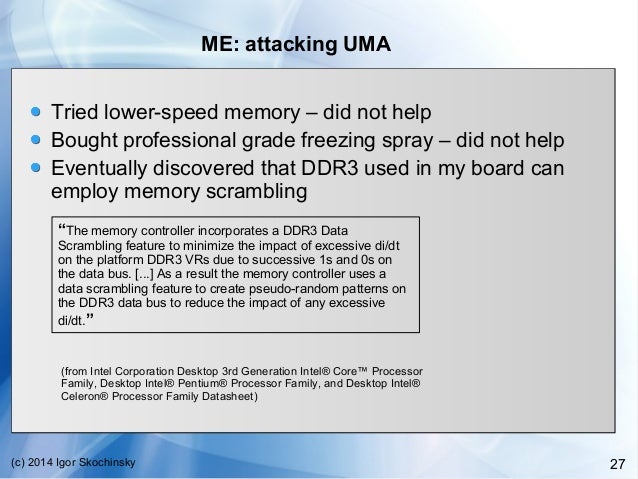

27. 27(c) 2014 Igor Skochinsky ME: attacking UMA Tried lower-speed memory – did not help Bought professional grade freezing spray – did not help Eventually discovered that DDR3 used in my board can employ memory scrambling “The memory controller incorporates a DDR3 Data Scrambling feature to minimize the impact of excessive di/dt on the platform DDR3 VRs due to successive 1s and 0s on the data bus. [...] As a result the memory controller uses a data scrambling feature to create pseudo-random patterns on the DDR3 data bus to reduce the impact of any excessive di/dt.” (from Intel Corporation Desktop 3rd Generation Intel® Core™ Processor Family, Desktop Intel® Pentium® Processor Family, and Desktop Intel® Celeron® Processor Family Datasheet)

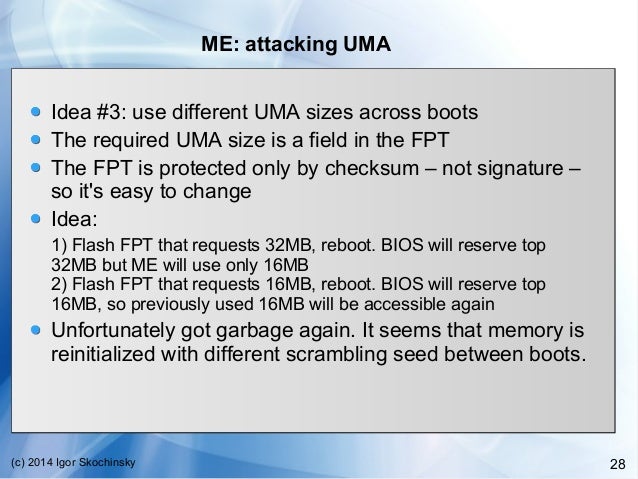

28. 28(c) 2014 Igor Skochinsky ME: attacking UMA Idea #3: use different UMA sizes across boots The required UMA size is a field in the FPT The FPT is protected only by checksum – not signature – so it's easy to change Idea: 1) Flash FPT that requests 32MB, reboot. BIOS will reserve top 32MB but ME will use only 16MB 2) Flash FPT that requests 16MB, reboot. BIOS will reserve top 16MB, so previously used 16MB will be accessible again Unfortunately got garbage again. It seems that memory is reinitialized with different scrambling seed between boots.

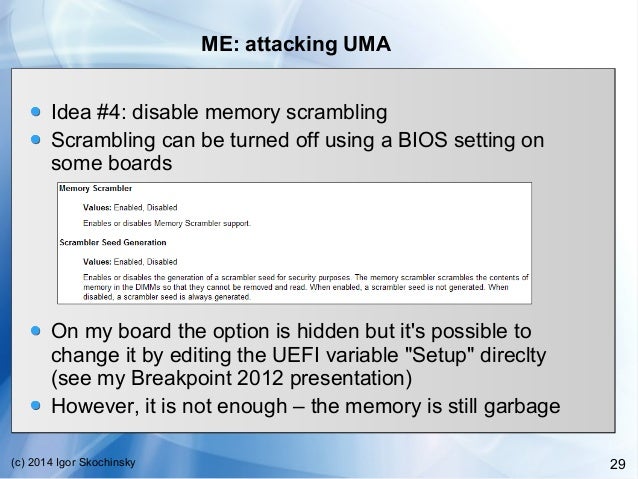

29. 29(c) 2014 Igor Skochinsky ME: attacking UMA Idea #4: disable memory scrambling Scrambling can be turned off using a BIOS setting on some boards On my board the option is hidden but it's possible to change it by editing the UEFI variable "Setup" direclty (see my Breakpoint 2012 presentation) However, it is not enough – the memory is still garbage

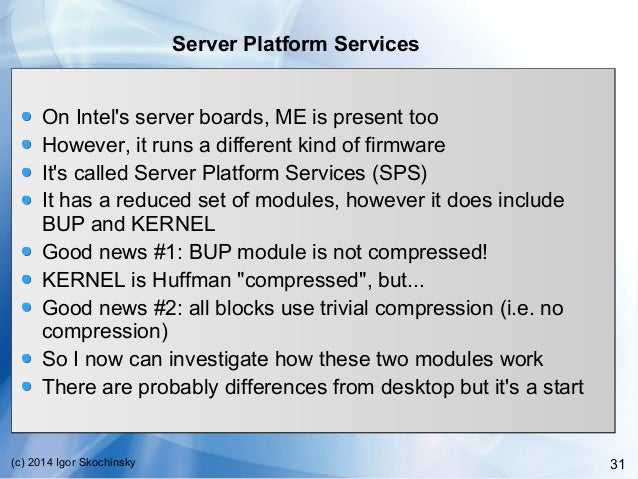

31. 31(c) 2014 Igor Skochinsky Server Platform Services On Intel's server boards, ME is present too However, it runs a different kind of firmware It's called Server Platform Services (SPS) It has a reduced set of modules, however it does include BUP and KERNEL Good news #1: BUP module is not compressed! KERNEL is Huffman "compressed", but... Good news #2: all blocks use trivial compression (i.e. no compression) So I now can investigate how these two modules work There are probably differences from desktop but it's a start

32. 32(c) 2014 Igor Skochinsky JOM aka DAL JOM is a module which appeared in ME 7.1 It implements what Intel calls "Dynamic Application Loader" (DAL) It allows to upload and run applications (applets) inside ME dynamically This feature is used to implement Intel Identity Protection Technology (Intel IPT) In theory, it allows a much easier way for running custom code on the ME Let's have a look at how it's implemented...

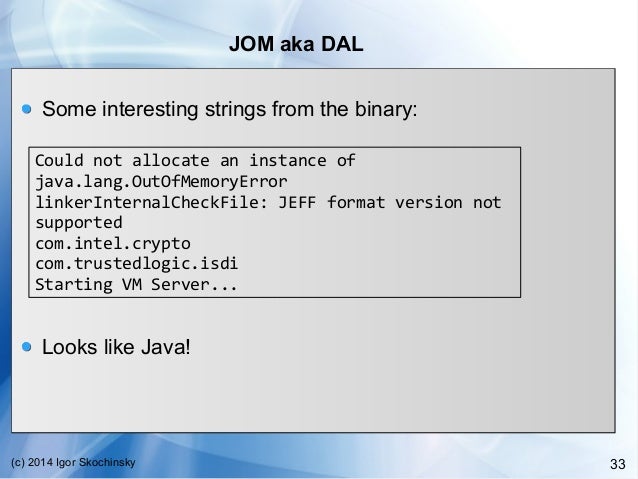

33. 33(c) 2014 Igor Skochinsky JOM aka DAL Some interesting strings from the binary: Looks like Java! Could not allocate an instance of java.lang.OutOfMemoryError linkerInternalCheckFile: JEFF format version not supported com.intel.crypto com.trustedlogic.isdi Starting VM Server...

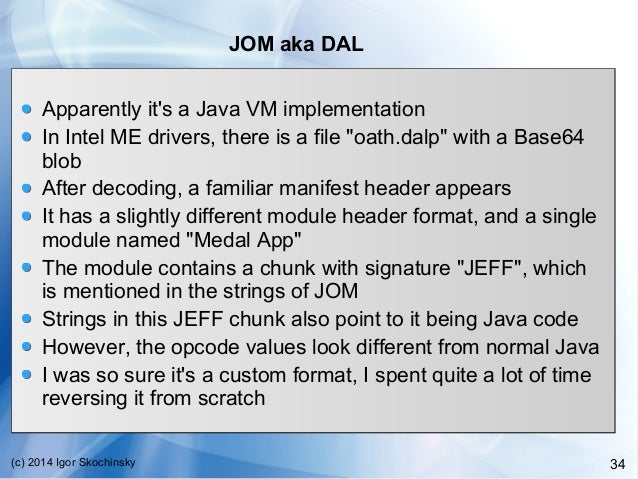

34. 34(c) 2014 Igor Skochinsky JOM aka DAL Apparently it's a Java VM implementation In Intel ME drivers, there is a file "oath.dalp" with a Base64 blob After decoding, a familiar manifest header appears It has a slightly different module header format, and a single module named "Medal App" The module contains a chunk with signature "JEFF", which is mentioned in the strings of JOM Strings in this JEFF chunk also point to it being Java code However, the opcode values look different from normal Java I was so sure it's a custom format, I spent quite a lot of time reversing it from scratch

35. 35(c) 2014 Igor Skochinsky JOM aka DAL There was one string in the module... There is no such instruction in standard Java. Let's try Google... .ascii "Invalid constant offset in the SLDC instruction"

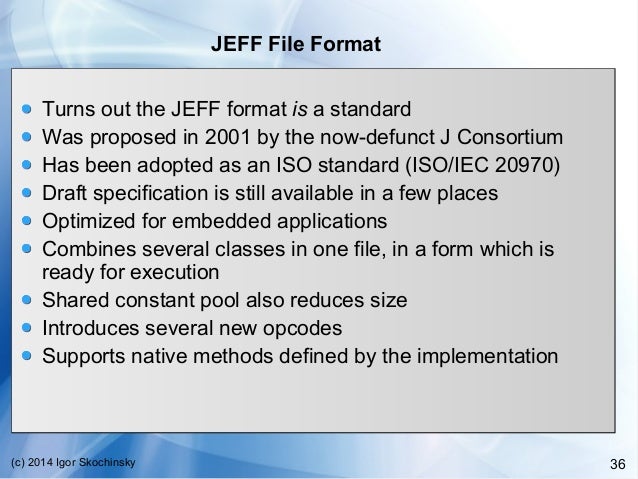

36. 36(c) 2014 Igor Skochinsky JEFF File Format Turns out the JEFF format is a standard Was proposed in 2001 by the now-defunct J Consortium Has been adopted as an ISO standard (ISO/IEC 20970) Draft specification is still available in a few places Optimized for embedded applications Combines several classes in one file, in a form which is ready for execution Shared constant pool also reduces size Introduces several new opcodes Supports native methods defined by the implementation

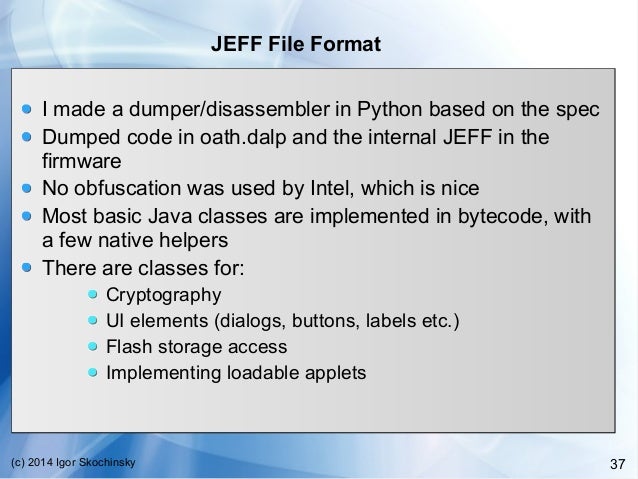

37. 37(c) 2014 Igor Skochinsky JEFF File Format I made a dumper/disassembler in Python based on the spec Dumped code in oath.dalp and the internal JEFF in the firmware No obfuscation was used by Intel, which is nice Most basic Java classes are implemented in bytecode, with a few native helpers There are classes for: Cryptography UI elements (dialogs, buttons, labels etc.) Flash storage access Implementing loadable applets

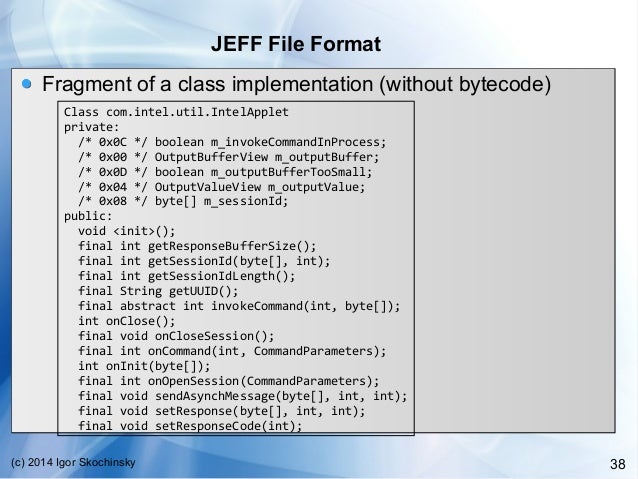

38. 38(c) 2014 Igor Skochinsky JEFF File Format Fragment of a class implementation (without bytecode) Class com.intel.util.IntelApplet private: /* 0x0C */ boolean m_invokeCommandInProcess; /* 0x00 */ OutputBufferView m_outputBuffer; /* 0x0D */ boolean m_outputBufferTooSmall; /* 0x04 */ OutputValueView m_outputValue; /* 0x08 */ byte[] m_sessionId; public: void <init>(); final int getResponseBufferSize(); final int getSessionId(byte[], int); final int getSessionIdLength(); final String getUUID(); final abstract int invokeCommand(int, byte[]); int onClose(); final void onCloseSession(); final int onCommand(int, CommandParameters); int onInit(byte[]); final int onOpenSession(CommandParameters); final void sendAsynchMessage(byte[], int, int); final void setResponse(byte[], int, int); final void setResponseCode(int);

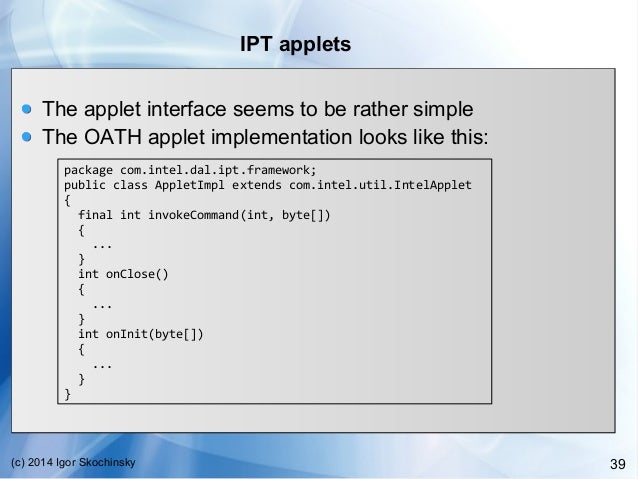

39. 39(c) 2014 Igor Skochinsky IPT applets The applet interface seems to be rather simple The OATH applet implementation looks like this: package com.intel.dal.ipt.framework; public class AppletImpl extends com.intel.util.IntelApplet { final int invokeCommand(int, byte[]) { ... } int onClose() { ... } int onInit(byte[]) { ... } }

40. 40(c) 2014 Igor Skochinsky IPT applets Unfortunately, even if I create my own applets, I can't run them inside ME Applet binaries have a signed manifest header and are verified before running Still, there may be vulnerabilities in the protocol, which is pretty complicated Let's have a look at how it works...

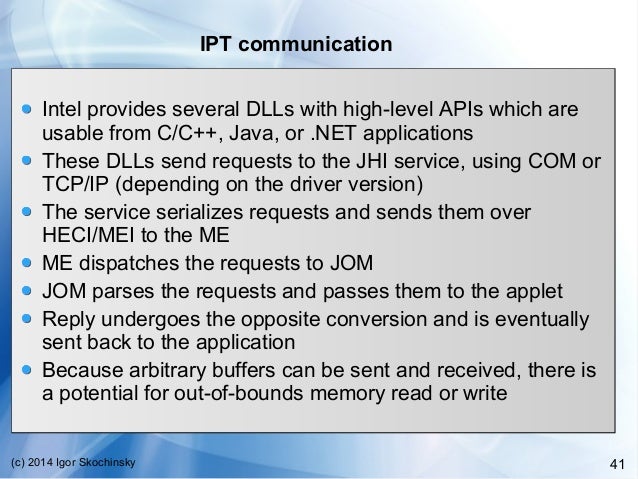

41. 41(c) 2014 Igor Skochinsky IPT communication Intel provides several DLLs with high-level APIs which are usable from C/C++, Java, or .NET applications These DLLs send requests to the JHI service, using COM or TCP/IP (depending on the driver version) The service serializes requests and sends them over HECI/MEI to the ME ME dispatches the requests to JOM JOM parses the requests and passes them to the applet Reply undergoes the opposite conversion and is eventually sent back to the application Because arbitrary buffers can be sent and received, there is a potential for out-of-bounds memory read or write

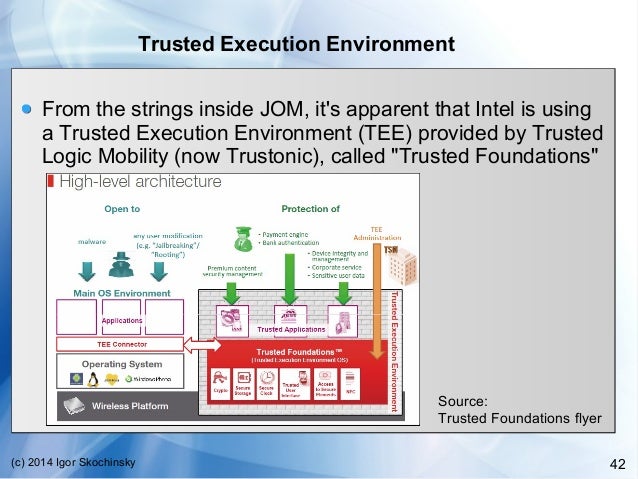

42. 42(c) 2014 Igor Skochinsky Trusted Execution Environment From the strings inside JOM, it's apparent that Intel is using a Trusted Execution Environment (TEE) provided by Trusted Logic Mobility (now Trustonic), called "Trusted Foundations" Source: Trusted Foundations flyer

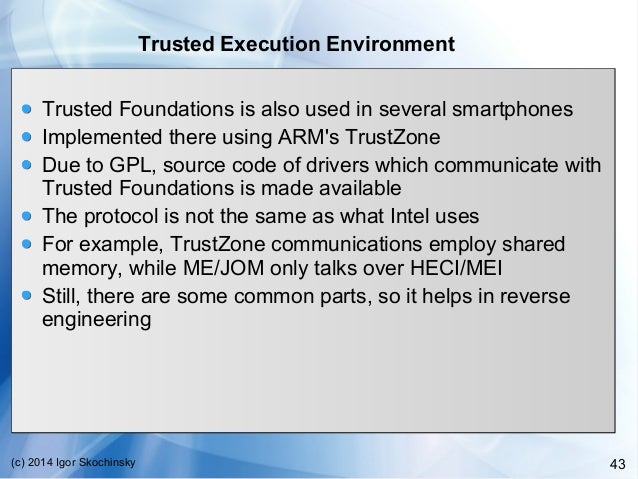

43. 43(c) 2014 Igor Skochinsky Trusted Execution Environment Trusted Foundations is also used in several smartphones Implemented there using ARM's TrustZone Due to GPL, source code of drivers which communicate with Trusted Foundations is made available The protocol is not the same as what Intel uses For example, TrustZone communications employ shared memory, while ME/JOM only talks over HECI/MEI Still, there are some common parts, so it helps in reverse engineering

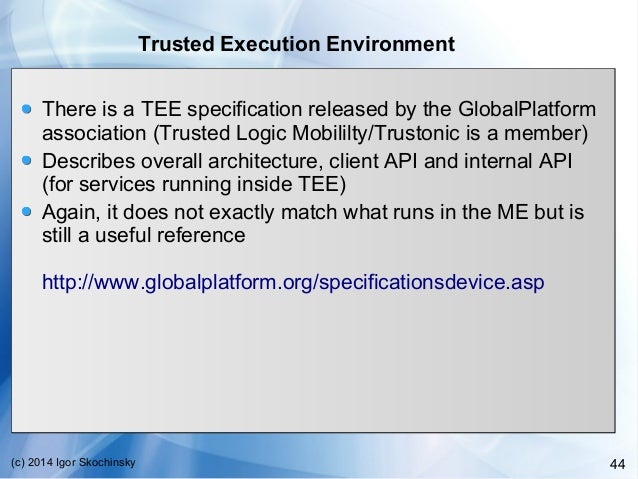

44. 44(c) 2014 Igor Skochinsky Trusted Execution Environment There is a TEE specification released by the GlobalPlatform association (Trusted Logic Mobililty/Trustonic is a member) Describes overall architecture, client API and internal API (for services running inside TEE) Again, it does not exactly match what runs in the ME but is still a useful reference http://www.globalplatform.org/specificationsdevice.asp

45. 45(c) 2014 Igor Skochinsky Results I still have not managed to run my own rootkit on the ME But I'm getting a more complete picture of how ME works The code of boot ROM, BUP and KERNEL modules has been discovered This allowed me to map many APIs used in other modules JEFF dumper is a good starting point for investigating DAL/IPT applets ARC support was released with IDA 6.4 and improved in IDA 6.5

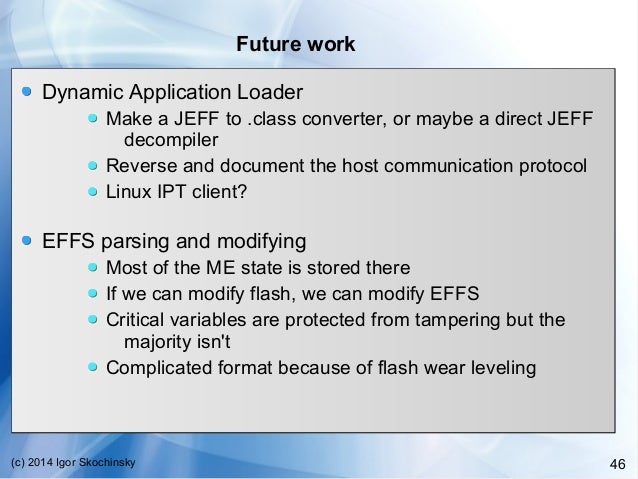

46. 46(c) 2014 Igor Skochinsky Future work Dynamic Application Loader Make a JEFF to .class converter, or maybe a direct JEFF decompiler Reverse and document the host communication protocol Linux IPT client? EFFS parsing and modifying Most of the ME state is stored there If we can modify flash, we can modify EFFS Critical variables are protected from tampering but the majority isn't Complicated format because of flash wear leveling

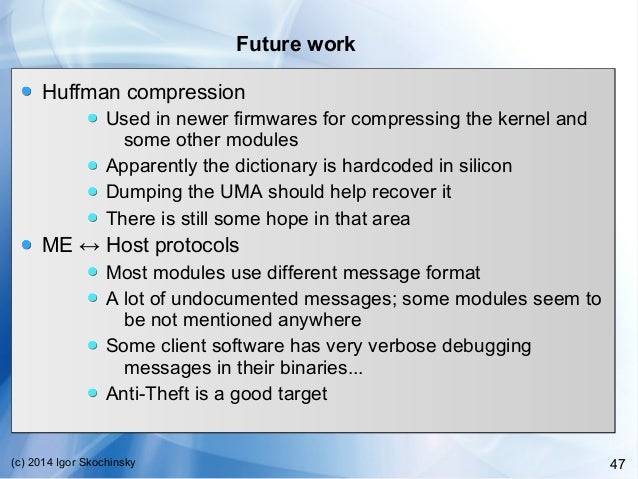

47. 47(c) 2014 Igor Skochinsky Future work Huffman compression Used in newer firmwares for compressing the kernel and some other modules Apparently the dictionary is hardcoded in silicon Dumping the UMA should help recover it There is still some hope in that area ME ↔ Host protocols Most modules use different message format A lot of undocumented messages; some modules seem to be not mentioned anywhere Some client software has very verbose debugging messages in their binaries... Anti-Theft is a good target

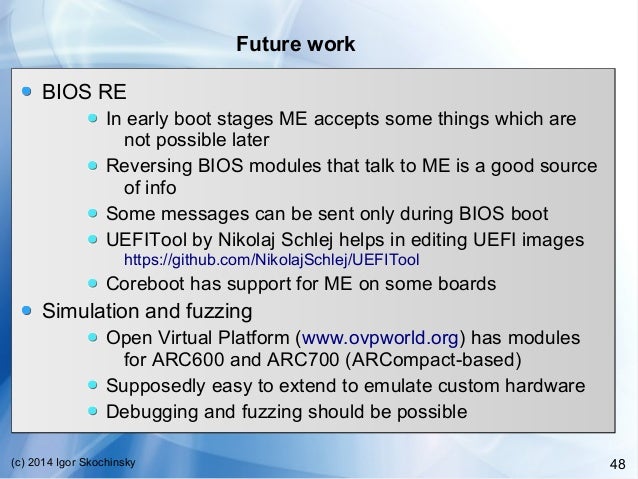

48. 48(c) 2014 Igor Skochinsky Future work BIOS RE In early boot stages ME accepts some things which are not possible later Reversing BIOS modules that talk to ME is a good source of info Some messages can be sent only during BIOS boot UEFITool by Nikolaj Schlej helps in editing UEFI images https://github.com/NikolajSchlej/UEFITool Coreboot has support for ME on some boards Simulation and fuzzing Open Virtual Platform (www.ovpworld.org) has modules for ARC600 and ARC700 (ARCompact-based) Supposedly easy to extend to emulate custom hardware Debugging and fuzzing should be possible

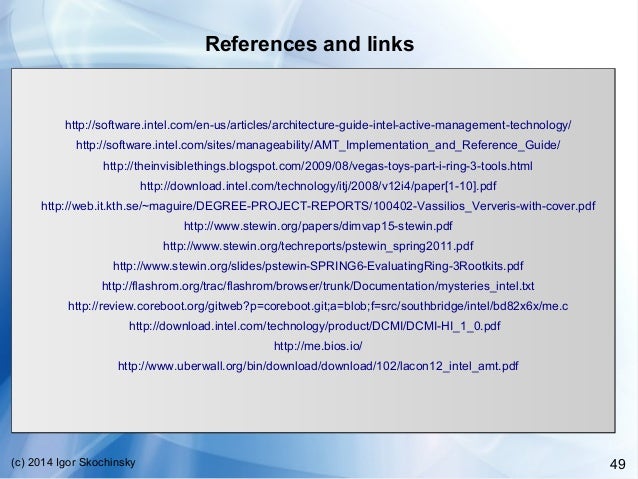

49. 49(c) 2014 Igor Skochinsky References and links http://software.intel.com/en-us/articles/architecture-guide-intel-active-management-technology/ http://software.intel.com/sites/manageability/AMT_Implementation_and_Reference_Guide/ http://theinvisiblethings.blogspot.com/2009/08/vegas-toys-part-i-ring-3-tools.html http://download.intel.com/technology/itj/2008/v12i4/paper[1-10].pdf http://web.it.kth.se/~maguire/DEGREE-PROJECT-REPORTS/100402-Vassilios_Ververis-with-cover.pdf http://www.stewin.org/papers/dimvap15-stewin.pdf http://www.stewin.org/techreports/pstewin_spring2011.pdf http://www.stewin.org/slides/pstewin-SPRING6-EvaluatingRing-3Rootkits.pdf http://flashrom.org/trac/flashrom/browser/trunk/Documentation/mysteries_intel.txt http://review.coreboot.org/gitweb?p=coreboot.git;a=blob;f=src/southbridge/intel/bd82x6x/me.c http://download.intel.com/technology/product/DCMI/DCMI-HI_1_0.pdf http://me.bios.io/ http://www.uberwall.org/bin/download/download/102/lacon12_intel_amt.pdf
